Battery material
XWELL supplies battery materials and accessories for lithium battery production and pack assembly, including raw materials, pack accessories, supporting materials and related consumables. These products can be purchased together with battery machines to simplify sourcing.
This category is suitable for lab preparation, pilot production and battery pack manufacturing projects. Please tell us your battery type, material specification, required quantity and application so we can help match suitable materials and accessories.
LNMO Cathode Sheet with High Electrochemical Stability and High-rate Performance for Balanced Energy Density in Lithium-ion Batteries
Model:LNMO
Current Collector Areal Density (mg/cm²):4.14
Current Collector Thickness (μm): 1+15+1
Electrode Size: 7.5x10cm or customs
Active Material Gram Capacity (mAh/g): 125(Reference)
Active Material Proportion:80%
Active Material Areal Density (mg/cm²):2, 3, 5
MOQ: 5 pcs
Leading time: 5-9 days
LFP Cathode Sheet with ± 1μm Tolerance Control for Mass Production Battery Grade and Single/Double-sided Coating
Model:LEP
Current Collector Areal Density (mg/cm²):4.14
Current Collector Thickness (μm): 1+15+1
Electrode Size: 7.5x10cm or customs
Active Material Gram Capacity (mAh/g): 170(Reference)
Active Material Proportion:80%~90%
Active Material Areal Density (mg/cm²)：2, 3, 5/Other Areal Densities
MOQ: 5 pcs
Leading time: 5-9 days
316L Stainless Steel Foil with Tensile Strength ≥480 MPa and Yield Strength ≥177 MPa for Battery Current Collector
Model:316L Stainless Steel Foil
Surface treatment:Nickel plating, Zinc plating
Material: 316L
Tensile Strength σb (MPa): ≥480
Conditional Yield Strength σ0.2 (MPa): ≥177
Elongation δ5 (%):≥40
MOQ: 1kg
Leading time: 5-9 days
High Purity Zinc Foil with 99.99% Zn Content for Battery Anodes in 100mm Width and 1m Length
Material:Zn
Zinc (Zn) content:> 99.99%
Length (m): 1
Width (mm): 100
MOQ: 1kg
Leading time: 5-9 days

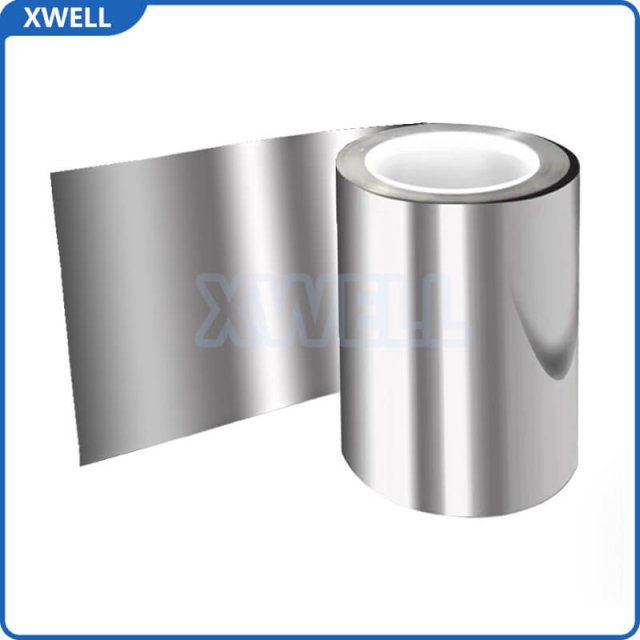

High Conductivity Aluminum Foil Current Collector for Li-ion/Li-S/Na-ion Button Batteries with 16μm Double-Sided Bright and 20μm Single-Sided Bright Options
Alloy Grade:Alloy Grade
Use:Electronic experiment
Electronic experiment: ≥99.6
Adhesive Side: Adhesive Side
Material: Aluminum
Shelf Life: 3 months from the production
MOQ: 1kg
Leading time: 5-9 days

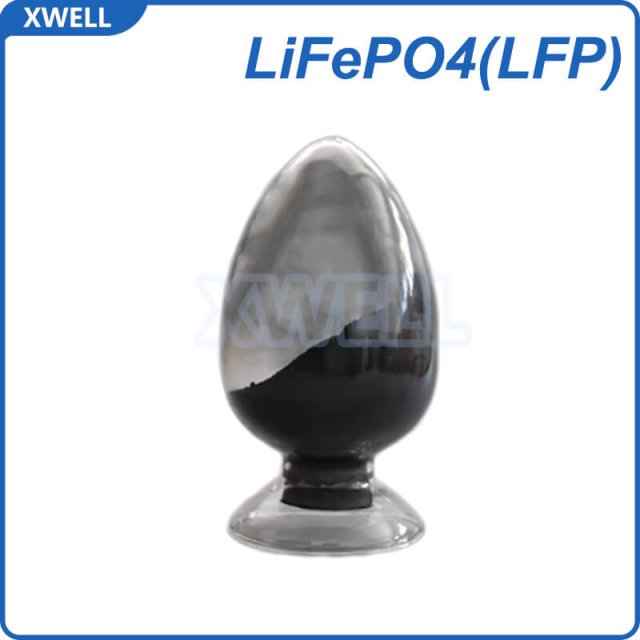

4th Generation High-Density Lithium Iron Phosphate (LFP) Cathode Material for Research-Grade Battery Applications
Use for:Lithium Ion Battery Positive Electrode
PH Value:9.47
Solid Moisture: 261.5ppm
Magnetic Substance: 0.16ppm
Tap Density: 1.02g/cm³
Powder Compaction Density: 2.59g/cm³
MOQ: 10kg
Leading time: 5-9 days

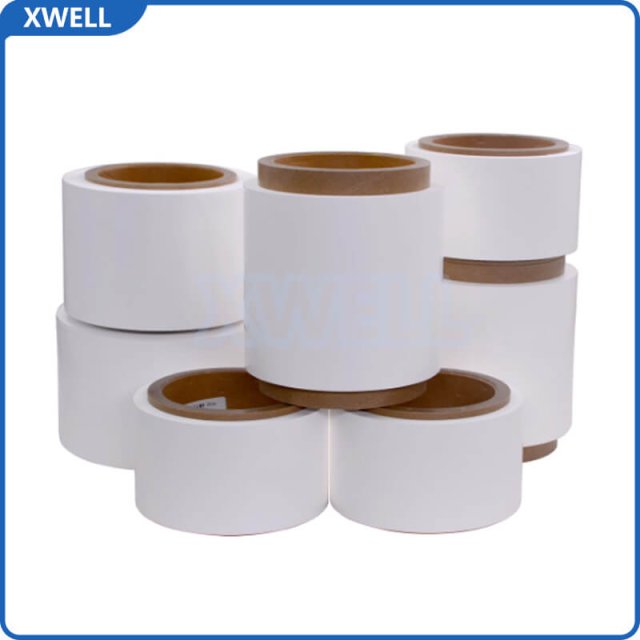

Lithium-Ion Battery Separator (2320/2325/2400/2500) – PE Separator, Ceramic-Coated (Single/Double-Side) for Li-Sulfur, Na-K-Li Batteries
Product Thickness (μm):12
Product Width (mm):60/100
Length (m): 100/customs
Porosity (%): 41
Elongation at Break MD (%): 0.8
Elongation at Break TD (%):0.2
MOQ: 10kg
Leading time: 5-9 days
304 Stainless Steel 18650 Battery Shell with 18mm Diameter and 65mm Length for New Energy Battery Accessories
Model:18650
Surface Finish:304/316
Accessories: Full set of 18650 battery components included.
Testing: Advanced equipment for dimensional and internal pressure checks.
diameter: 18mm
length:65mm
MOQ: 100pcs
Leading time: 5-9 days
Glass Fiber Separator GF-D Filter Paper – Lithium Battery Isolation Membrane for Potassium Sodium Lithium Battery Special Use
Model:2320/2325/2500
Pore Size:2.7μm
Thickness: 675μm
Operating Temperature: < 500℃
Filtration Speed: 41Herzberg(s)
Air Flow Rate:2.2Gurley(s)
Basic Weight:2.2Gurley(s)
MOQ: 25pcs
Leading time: 5-9 days
Battery PP Separator Disc Model 2320/2325/2500 with 18mm Diameter and 3V Rated Voltage for Button Lithium-Ion Batteries
Model:2320/2325/2500
Rated voltage:3V
Diameter: 18mm
Material: High-Purity Polypropylene (PP)
MOQ: 100pcs
Leading time: 5-9 days
Durable Nickel/Aluminum/Copper-Plated/Al-Ni Battery Tabs – Suitable for Soft-Pack Flexible Lithium-Ion Batteries
Thick（mm）:0.08/0.1/0.2
Width（mm）:Width（mm）
Length（mm）: 30/45/46/55/60
Material: Copper/Aluminum/Nickel + Film
Color: Metallic finish
Film Color: Black/white
MOQ: 50pcs
Leading time: 5-9 days
Rigid Carbon Cloth (Hydrophilic/Hydrophobic) – Conductive Catalyst & Current Collector for Fuel Cells & Li-Air Batteries
Model:Carbon Cloth Hydrophilic / Hydrophobic
Thickness: 0.34±0.02mm
Dimension:36cm * 18cm
Areal Weight: 200~230g/m²
Longitudinal Resistance: 0.11×10⁻² Ω
MOQ: 5 pcs
Leading time: 5-9 days
Single Sided Double Sided Carbon Coated Copper Foil Lithium Sulfur Battery
Model:Carbon-Coated Copper Foil
Coating Thickness:1μm (single side)
Surface Resistivity:<30Ω/25μm²
Total Width: 227±1mm
Base Foil Thickness:10±1.0μm (copper)
Copper Purity: >99.99%
Total Thickness: 12±1μm (post-coating)
MOQ: 1m
Leading time: 5-8 days
Lithium Polyacrylic Acid Binder PAALi Silicon Carbon Negative Electrode
Model:PAALi
Appearance:Colorless transparent liquid
Molecular Weight:~300,000
Solid Content:3.50–4.50%
Viscosity:2000–4000 mPa·s
pH Value: 7.0–9.0
Applications: Silicon-Carbon Anodes
Experimental Batteries: Compatible with coin cells & pouch cells.
MOQ: 1m
Leading time: 5-8 days
Ethylene Carbonate Reagent CAS No. 96-49-1 Lithium Ion Battery Electrolyte Solvent
Model:CAS 96-49-1
Molecular Formula:C₃H₄O₃
Molecular Weight:88.06 g/mol
CAS Number:96-49-1
Purity:≥99%
Appearance: Colorless liquid/crystalline solid
Melting Point: 36-38°C
Flash Point: 160°C
MOQ: 100g
Leading time: 5-8 working days
Microporous Copper Aluminum Foil Solid State Battery Lithium Battery
Model:CC
Thickness:8μm / 10μm / 12μm / >12μm
Width:187mm / 260mm / 350mm (OEM*)
Aperture:0.25mm / 0.35mm / 0.40mm (OEM*)
Spacing:0.6mm / 0.8mm (molded) / 1mm
Porosity: 10%-40% (e.g., 17%: 0.35mm+0.8mm)
Thickness: 99.6μm
Compaction Density: 3.31g/cm³
MOQ: 100pcs
Leading time: 5-8 working days
CMC2200 Sodium Carboxymethyl Cellulose Negative Electrode Binder Japan Daicel
Model:CMC2200
Purity:≥99%
Moisture Content:≤10%
Viscosity (1% solution @25°C):1500-3000 mPa·s
Degree of Substitution:0.8-1.2
pH Value：6.0-8.5
Weight-Average MW: ~1.6 million
Number-Average MW: ~150,000
MOQ: 20g
Leading time: 5-8 working days
PVDF900 Binder HSV900 For Bonding Lithium Batteries French Arkema Polyvinylidene Fluoride Powder
Model:PVDF900
Purity:≥99.5%
Moisture:≤0.1%
Melting Point:160-180°C
Packaging:Plastic bottles
Storage Condition：Sealed at room temperature
Shelf Life: 2 years from production date
Safety Class: Class 4 (per Dangerous Goods Classification)
MOQ: 20g
Leading time: 5-8 working days
