Sodium Vanadium Phosphate NVP High Rate Polyanion Sodium Ion Battery Positive Electrode

  1. Home
  2. Battery material
  3. Sodium Ion Battery Raw Material
  4. Sodium Vanadium Phosphate NVP High Rate Polyanion Sodium Ion Battery Positive Electrode

​​Material Name​:Sodium Vanadium Phosphate (NVP)
 Type:Long-life high-rate polyanionic sodium-ion battery cathode material
 Model:NVP-001
 ​​​​Chemical Formula​:Na₃V₂(PO₄)₃
 Particle Size D50 (μm):15.00±5.00
 ​​Specific Surface Area (m²/g):25-35
 Loose Density (g/cm³):0.60±0.10
 ​Tap Density (g/cm³):1.00±0.20
 MOQ: 10g
 Leading time: 5-7 working days

Category:

Sodium Vanadium Phosphate NVP Long Life High Rate Polyanion Sodium Ion Battery Positive Electrode Material

​Introduction​​

Sodium Vanadium Phosphate (Na₃V₂(PO₄)₃, NVP) is a ​​polyanionic cathode material​​ widely used in sodium-ion batteries (SIBs). It exhibits ​​excellent structural stability, high operating voltage, and long cycle life​​, making it a promising candidate for ​​large-scale energy storage applications​​.

​​Key Features​​

  1. ​​Chemical Formula​​: Na₃V₂(PO₄)₃ (NVP)
  2. ​​Crystal Structure​​: NASICON-type (3D open framework)
    • Provides ​​fast Na⁺ ion diffusion​​ due to interconnected channels.
    • Ensures ​​structural stability​​ during charge/discharge cycles.
  3. ​​Electrochemical Performance​​
    • ​​High Voltage​​: ~3.4 V vs. Na⁺/Na (due to V³⁺/V⁴⁺ redox couple).
    • ​​Theoretical Capacity​​: 117.6 mAh/g (practical capacity ~110 mAh/g at 0.1C).
    • ​​Excellent Rate Capability​​: Retains >90% capacity at 1C rate.
    • ​​Long Cycle Life​​: >1000 cycles with minimal capacity degradation.
  4. ​​Physical Properties​​

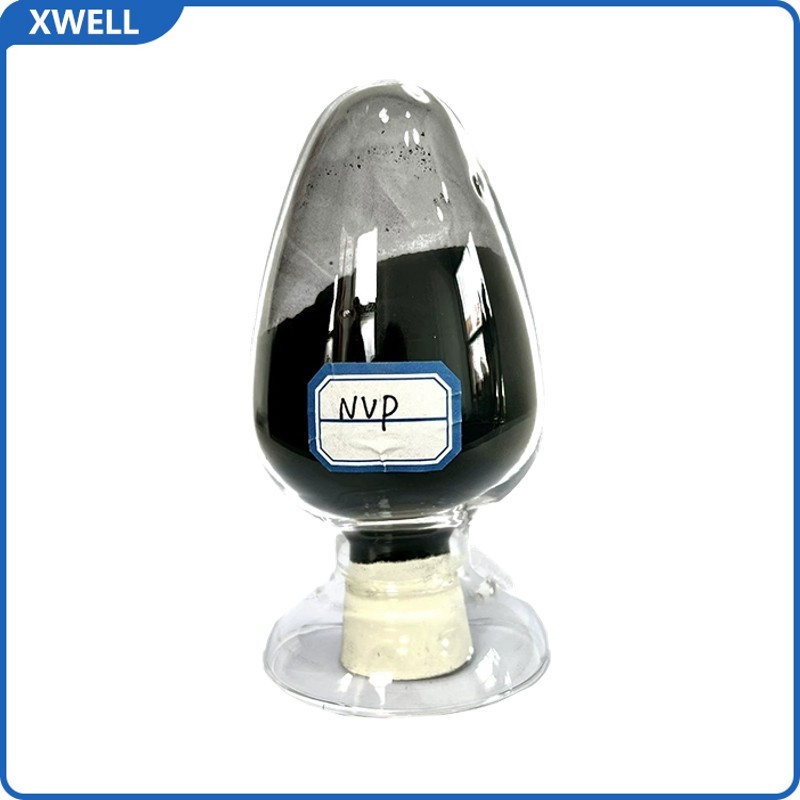

    • ​​Appearance​​: Black powder.
    • ​​Particle Size (D50)​​: 15.00±5.00 μm.
    • ​​Tap Density​​: ~1.00 g/cm³ (suitable for electrode fabrication).
    • ​​Moisture Sensitivity​​: Low (≤1000 ppm).

Specifications

Test Item Typical Value
Material Name Sodium Vanadium Phosphate (NVP)
Type Long-life high-rate polyanionic sodium-ion battery cathode material
Model NVP-001
Chemical Formula Na₃V₂(PO₄)₃
Particle Size D50 (μm) 15.00±5.00
Specific Surface Area (m²/g) 25-35
Loose Density (g/cm³) 0.60±0.10
Tap Density (g/cm³) 1.00±0.20
Material Color Black powder
pH 6.0~7.0
Moisture (ppm) ≤1000
0.1C Specific Capacity (mAh/g) ≥112
1C Specific Capacity (mAh/g) ≥108
