Model:MS-PMT-1

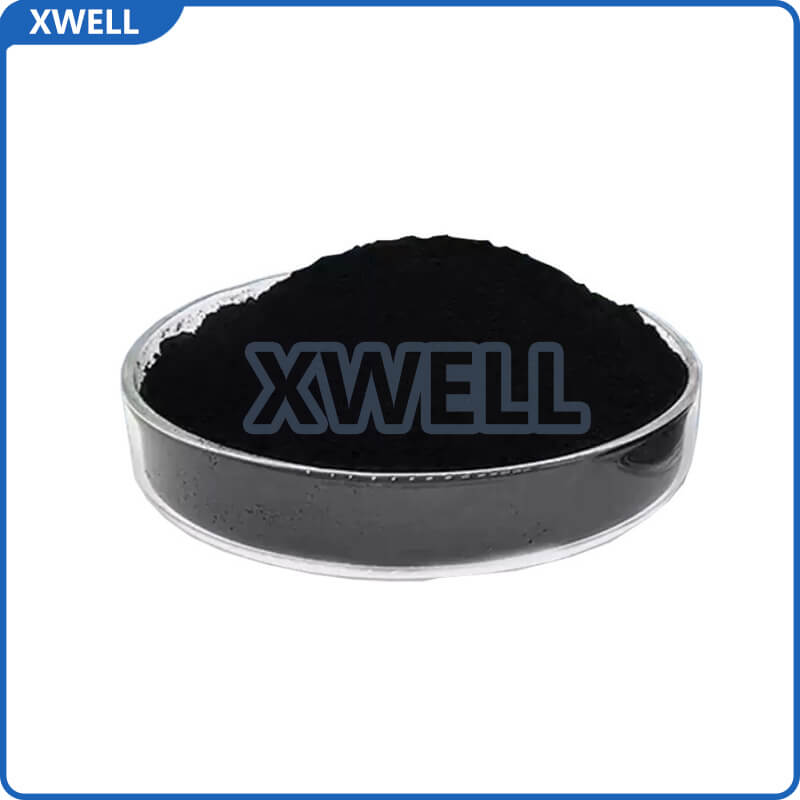

 Appearance:Black Powder
 Specific Surface Area:0.843m²/g
 Tap Density:1.586g/cm³
 Gram Specific Capacity:117.31mAh/g
 Initial Efficiency:95%
 MOQ: 200g
 Leading time: 5-7 working days

SKU: LIC/LZC Category:

Sodium Nickel Manganate MS-PMT-1 — Sodium-Ion Battery Cathode Material Sodium Nickel Manganese Oxide P2-type

As a key cathode material for next-generation sodium-ion batteries (SIBs), Sodium Nickel Manganate MS-PMT-1 stands out for its excellent electrochemical performance, cost-effectiveness, and environmental friendliness. Tailored for energy storage and low-to-medium power applications, it addresses the core demands of the sodium-ion battery industry for high stability and sustainable materials. The maximum charging voltage can reach 4.2V, resulting in a significant increase in energy density.

Core Performance Advantages

  • Superior Electrochemical Stability Exhibits outstanding cycle performance with a capacity retention rate of over 85% after 1000 charge-discharge cycles at 1C rate, ensuring long-term reliability for battery systems.
  • Optimized Sodium-Ion Diffusion The well-structured crystal lattice promotes efficient sodium-ion intercalation/deintercalation, delivering a reversible specific capacity of ~120-140 mAh/g, suitable for medium-energy-density application scenarios.
  • Excellent Thermal Safety Maintains structural integrity at high temperatures (up to 200°C), reducing risks of thermal runaway and enhancing the safety of sodium-ion battery packs.
  • Cost-Effective & Sustainable Utilizes abundant and low-cost nickel and manganese resources (no reliance on scarce cobalt), lowering the overall material cost of sodium-ion batteries and aligning with green energy development trends.

Material Specifications

SPECIFICATION
UNIT
INDEX
TYPICAL VALUE
Appearance / Black Powder /
Tap Density g/cm³ ≥1.20 1.586
Specific Surface Area m²/g 0.3-1.0 0.843
H₂O ppm ≤500 463
D10 μm ≥2.00 3.157
D50 μm 8.00±2.00 10.473
D90 μm ≤24.00 25.969
Na wt% 20.50±21.00 20.25
Ni+Mn wt% 50.50±1.00 50.08
pH / ≤13.00 12
Gram Specific Capacity mAh/g ≥100.0 117.31
Initial Efficiency % ≥92 95

Why Choose MS-PMT-1?

MS-PMT-1 sodium nickel manganate cathode material combines performance, cost, and safety—three critical factors for sodium-ion battery commercialization. We adhere to strict quality control standards in the production process, ensuring consistent particle size distribution, high purity, and stable electrochemical performance for each batch. Customization services for particle size, tap density, and other parameters are also available to meet diverse customer requirements.
