Battery spacer holder:Prismatic lithium-ion battery
 Conductor Material:Tinned copper / Nickel-plated copper / Aluminum
 Insulation Material:PA66/PPO/PEEK
Working Voltage:≤1500V DC
 Current Capacity:Customizable up to 800A
 IP Rating:IP54
 MOQ: 100pcs
 Leading time: 5-8 working days

Category:

Prismatic Battery Pack-Specific Custom CCS Contact & Current Collection System

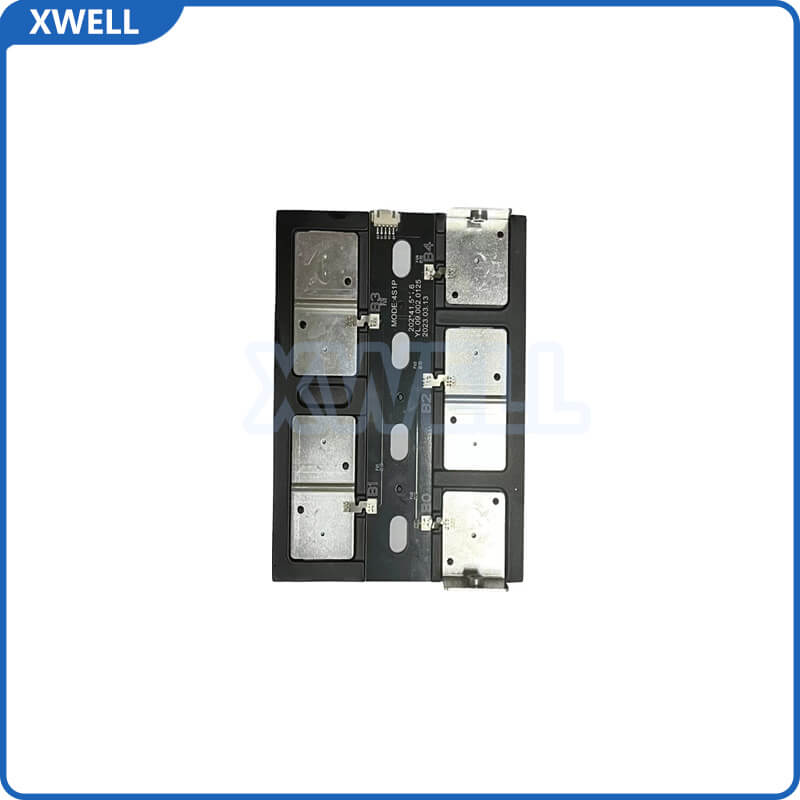

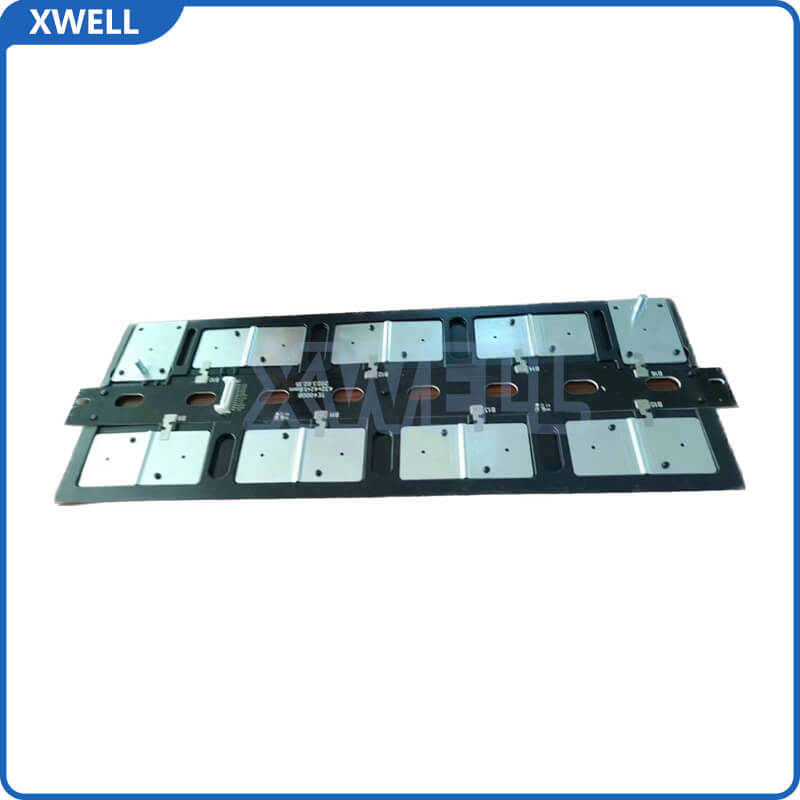

Product Overview

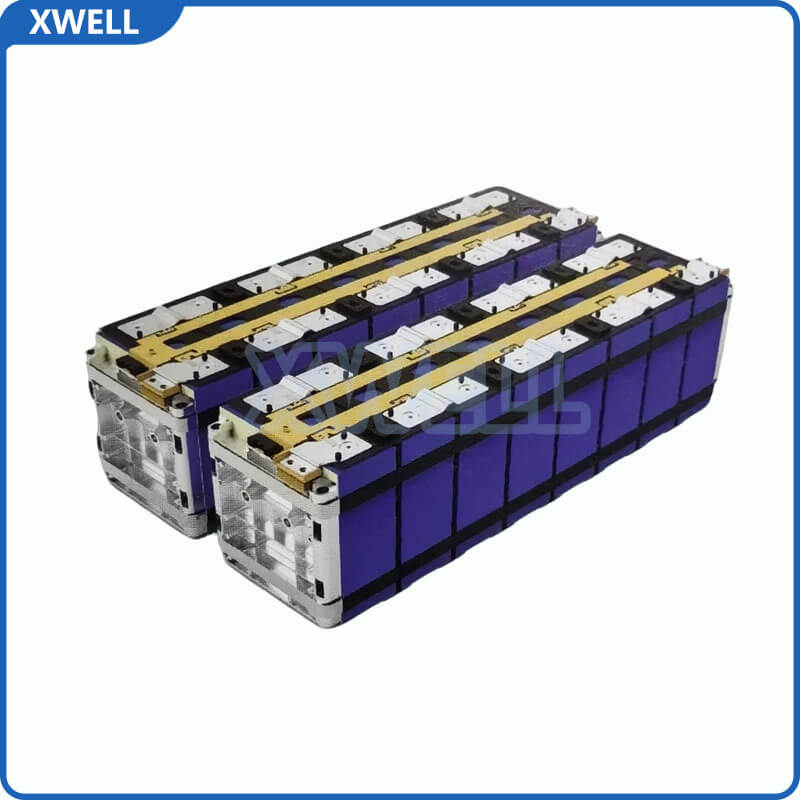

As the core connection and current collection component for prismatic lithium-ion battery packs, our customized CCS (Cell Contact System) integrates signal acquisition modules, plastic structural parts, and copper-aluminum busbars into an integrated, high-performance unit. Exclusively engineered for prismatic battery pack applications, it enables secure, reliable series and parallel connections between battery cells, ensuring efficient, low-loss current transmission while significantly enhancing the overall safety, stability, and operational efficiency of the battery pack. With its precision design, robust performance, and broad adaptability to diverse prismatic cell specifications, this CCS contact system has earned widespread trust and recognition from global customers across the new energy, energy storage, and industrial sectors.

Key Features

  1. High-purity copper/aluminum busbars, ≤0.001Ω contact resistance for efficient current transmission.
  2. UL94 V-0 fire-retardant insulation materials, excellent anti-short circuit and anti-leakage performance.
  3. Customized for prismatic cells, corrosion-proof, working temp -40℃~+85℃, 10+ years lifespan.

Technical Specifications

Item Specification
Applicable Cell Type Prismatic lithium-ion battery (LiFePO₄/NCM, etc.)
Conductor Material Tinned copper / Nickel-plated copper / Aluminum (optional)
Insulation Material PA66/PPO/PEEK (high-temp resistant ≥120℃)
Working Voltage ≤1500V DC
Current Capacity Customizable up to 800A
IP Rating IP54 (optional IP67 for outdoor applications)

Applications

Widely used in prismatic battery packs for New Energy Vehicles (EVs, hybrid vehicles), Energy Storage Systems (ESS: household, industrial, grid-scale), Electric Forklifts, Portable Power Stations, and Telecommunication Base Stations. (英文:EVs, ESS, electric forklifts, portable power stations, telecom base stations)

Why Choose US?

  1. Flexible and diverse products with thousands of product specifications to meet the diverse needs of buyers.
  2. The minimum order quantity is low and samples can be customized.
  3. Short production delivery cycle, fast delivery speed of the entire cabinet.
  4. Multiple payment methods facilitate customer payment.
  5. Good after-sale service, long product warranty and continual technique support.
