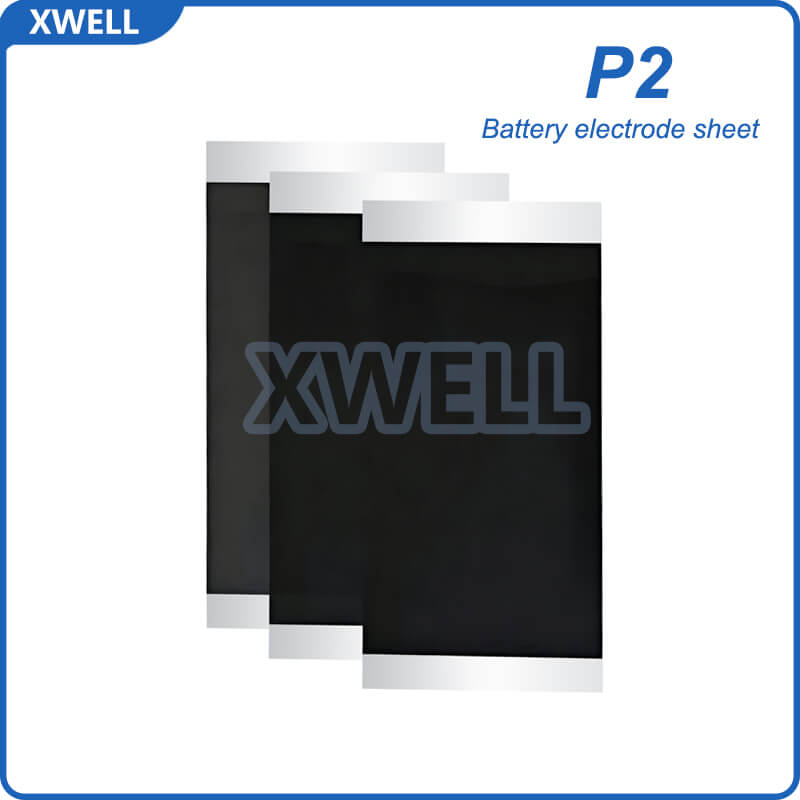

P2 cathode sodium-ion battery positive electrode with 93.50% active material proportion and 3.63mg/cm² current collector areal density in P2 type crystal structure
Model:P2
Coating Process: Wet Method
Active Material Proportion:93.50%
Current Collector Areal Density: 3.63mg/cm²/g
Side: Single/Double
MOQ: 5 pcs
Leading time: 5-9 days
P2 cathode sodium-ion battery positive electrode with 93.50% active material proportion and 3.63mg/cm² current collector areal density in P2 type crystal structure
Sodium nickel manganese titanium oxide (NaNiMnTiOx), single/double-sided coating, mass production battery grade, customizable
Crystal Structure (P2 Type)
Features a layered structure where transition metals (M/T) and oxygen atoms form a close-packed framework with sodium ions located in the layered gaps. The “P” denotes trigonal prismatic coordination of sodium ion sites, while “2” indicates two layers of transition metal-oxygen layers per unit cell.
Key Properties
- High Operating Voltage: ~3.6 V average voltage when containing the Mn³⁺/Mn⁴⁺ redox couple
- Excellent Rate Performance: P2 structure’s two-dimensional diffusion channels enable rapid sodium ion migration for fast charging/discharging
- High Theoretical Capacity: Delivers substantial reversible capacity through redox couples like Ni²⁺/Ni⁴⁺
Technical Specifications
| Product Name | Code | Areal Density | Single/Double Side | Current Collector Areal Density | Active Material Proportion | Calendering Density | Coating Process |
|---|---|---|---|---|---|---|---|
| NMTO (P2 Type) | NMTO-D01 | 27mg/cm² | Double Side | 3.63mg/cm² | 93.50% | 2.3g/cm³ | Wet Method |
| NMTO (P2 Type) | NMTO-S01 | 13.5mg/cm² | Single Side | 3.63mg/cm² | 93.50% | 2.08g/cm³ | Wet Method |
Electrochemical Performance & Storage
P2 cathode batteries deliver high energy density (exceeding 280Wh/kg) for demanding applications. Requires storage in dry, low-humidity environments to prevent performance degradation from CO₂ and H₂O reactions during charging.
Advantages of Our NMTO Cathode Sheets
- Enhanced Battery Life: Minimizes delamination risks during cycling
- Process Compatibility: Optimized for slurry coating, calendering, and stacking processes
- Quality Consistency: Strict ±1μm tolerance control ensures reliability for industrial-scale production
