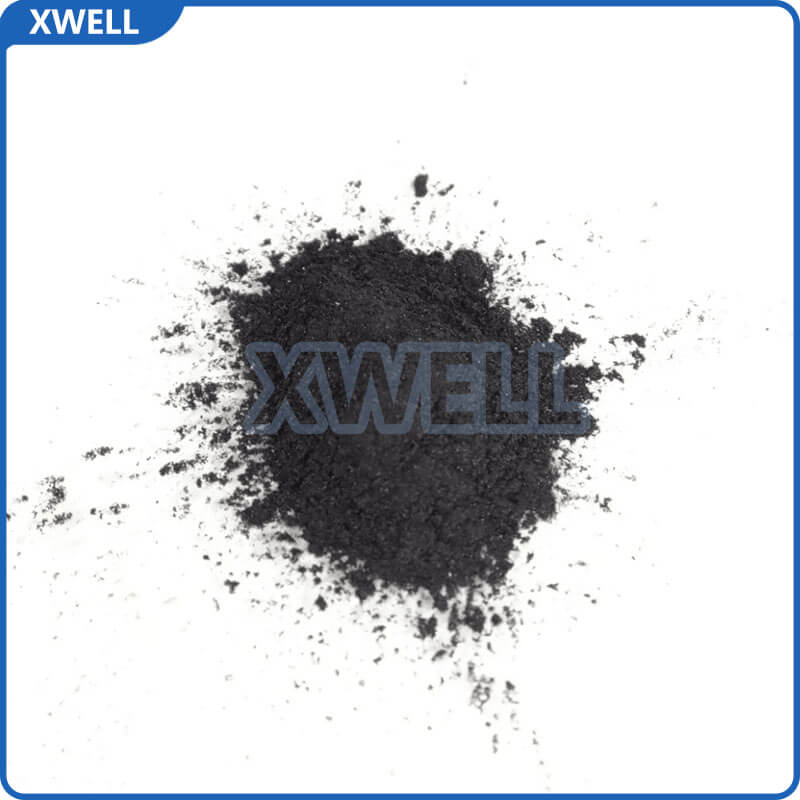

NCM811 Cathode Material MS-811-83 Single Crystal Lithium Niobate Coated
Model:MS-811-83
Product Usage:Laboratory
Calendering Density:3.53g/cm³
SSA (BET):0.58m²/g
Element Content:82.1%
Application:Solid-state battery
MOQ:5g
Leading time: 5-8 working days
NCM811 Cathode Material MS-811-83 Single Crystal Lithium Niobate Coated
Advanced high-voltage, high-capacity cathode material designed for scientific research applications, compatible with silicon-carbon anodes for high-capacity battery cell production.
Key Specifications
| Item | Sub-item | Unit | Value | Instrument |
|---|---|---|---|---|
| Particle Size | D10 | μm | 2.1 | Malvern Instruments Ltd MASTERSIZER2000 |
| D50 | μm | 3.9 | ||
| D90 | μm | 7 | ||
| Calendering Density | g/cm³ | 3.53 | Micromeritics GeoPyc 1360 | |
| SSA (BET) | m²/g | 0.58 | Micromeritics Tristar 3000 | |
| Element Content | % | 82.1 | METTLER TOLEDO FE30 | |
| Co | % | 12 | ||
| Mn | % | 5.9 | METTLER TOLEDO G20 | |
| Li₂CO₃ | % | 1130 | ||
| LiOH | % | 1730 |
Liquid Battery Performance Data
EC/DMC/EMC = 1:1:1 with 1.1mol/L LiPF₆, 1.5% VC and 1.5% PS
| Parameter | Rate | Value |
|---|---|---|
| Capacity | 0.1C | 210 mAh/g |
| Capacity | 0.5C | 199 mAh/g |
| Capacity | 1C | 193.5 mAh/g |
| Efficiency | 0.1C | 92.40% |
All-Solid-State Battery Performance Data
Composite Cathode Ratio: 7:3 | Anode: Lithium-Indium Alloy
| Parameter | Rate | Value |
|---|---|---|
| Capacity | 0.1C Ch | 248.6 mAh/g |
| Capacity | 0.1C Disc | 200 mAh/g |
| Efficiency | 0.1C | 80% |
Product Advantages
- Enhanced Battery Life: Minimizes delamination risks during charge cycles
- Process Compatibility: Optimized for slurry coating, calendering, and stacking processes
- Quality Consistency: Strict ±1μm tolerance control ensures reliable industrial-scale production
