MPP Microporous Foaming Material – Lightweight High-Strength Polypropylene Foam for Custom Applications

  1. Home
  2. Battery material
  3. Battery Pack Accessories
  4. MPP Microporous Foaming Material - Lightweight High-Strength Polypropylene Foam for Custom Applications

Material:Flame-retardant polypropylene foam
 Color:White
 Flame Retardancy:HF-01
 Adhesive Type :≥20%
 Compressive stress retention rate:1~60mm
 Hardness (Shore C): 60±5
 Density: 40±8 kg/m³
 Water Absorption: ＜0.5%
 Tensile Strength: ≥1.3 MPa
 MOQ: 100pcs
 Leading time:7-10 working days

SKU: MPP Categories: ,

High-Density Anti-Slip Shock Absorption MPP Foam for Battery Separator Flame Retardant Lightweight With High Strength

Product Introduction

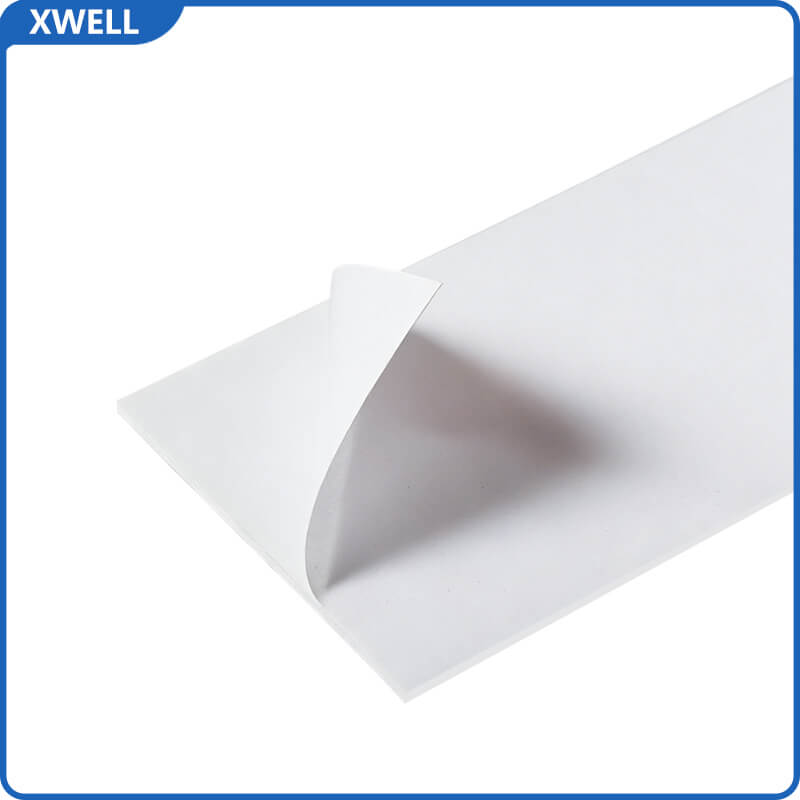

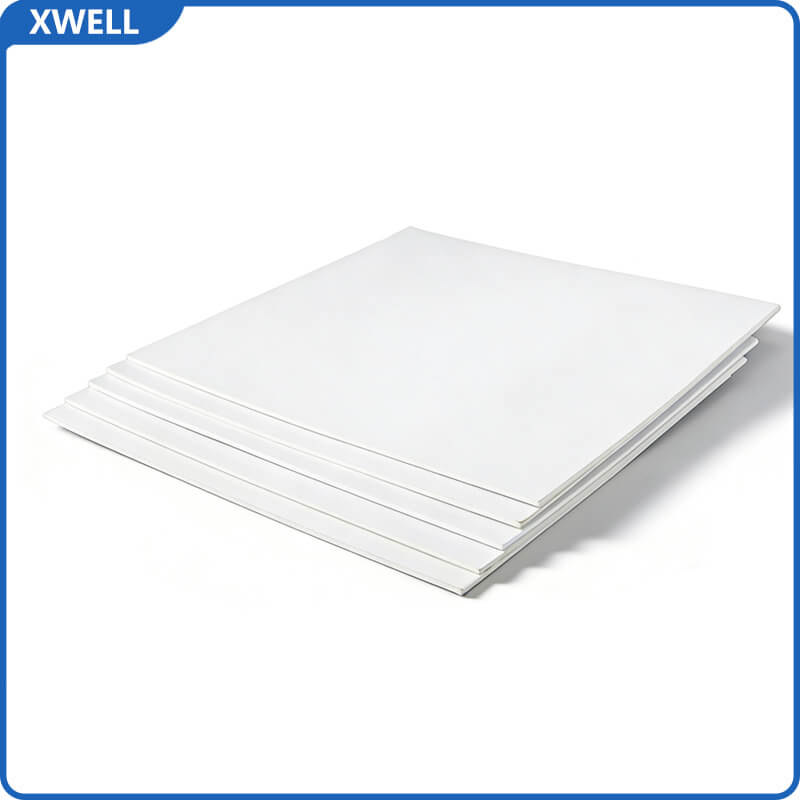

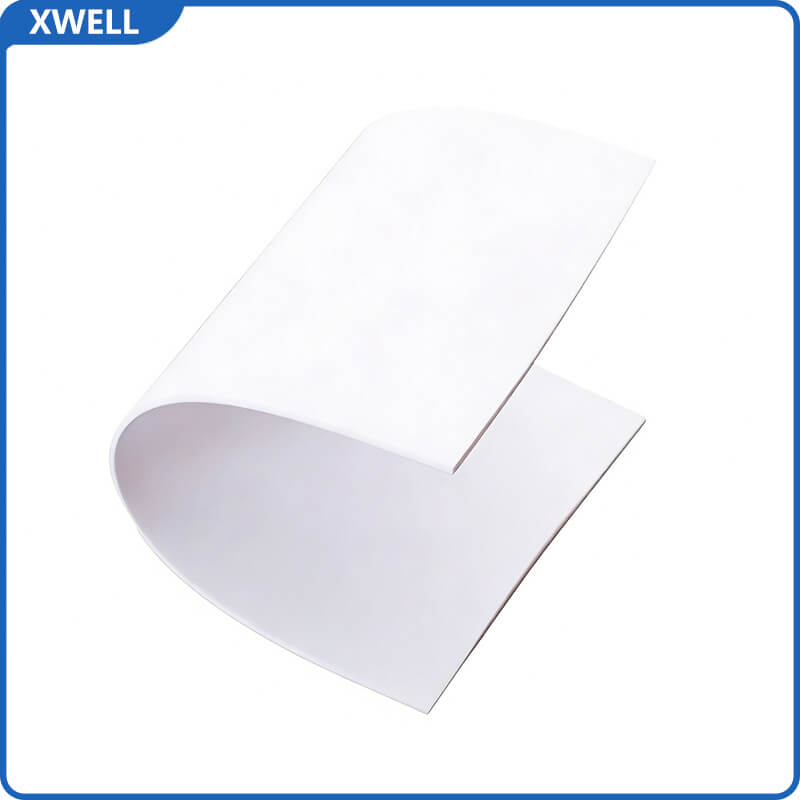

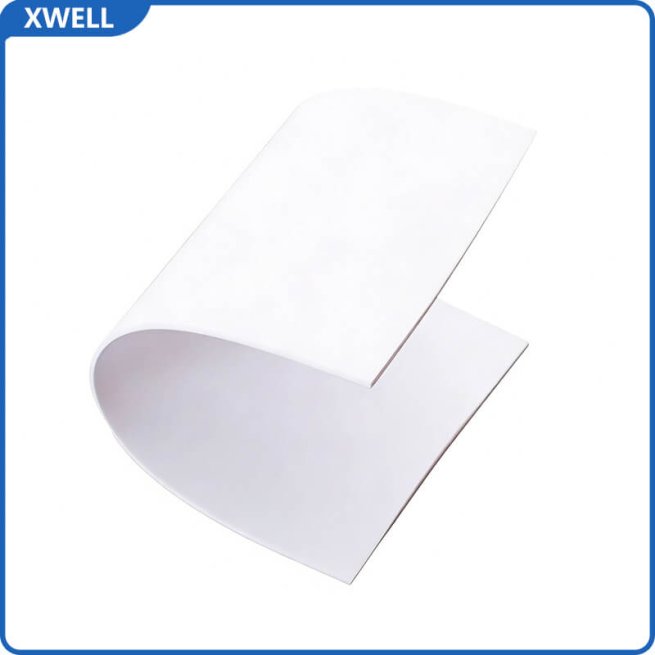

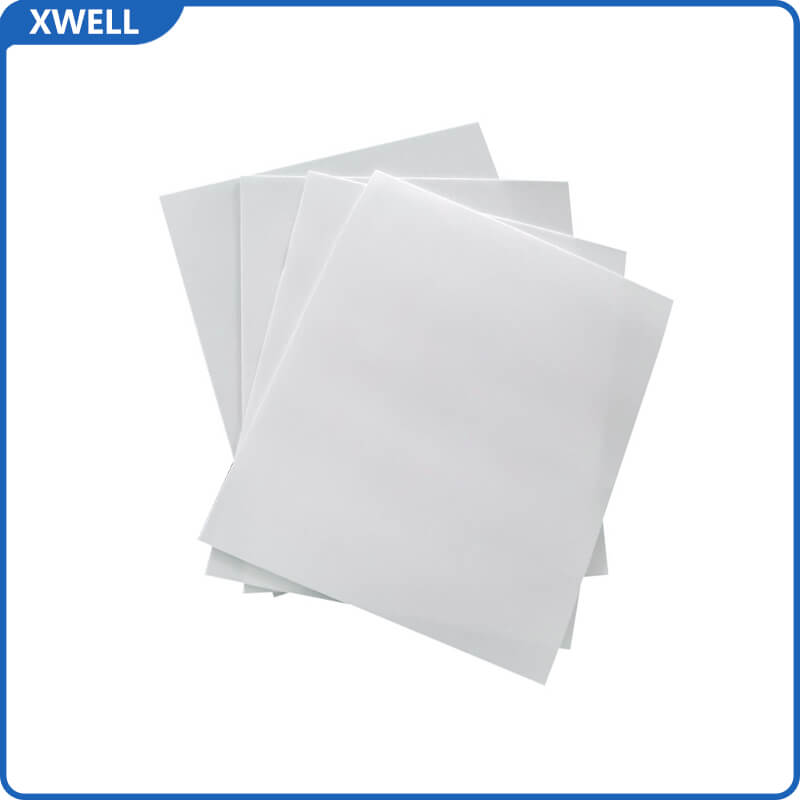

MPP Microporous Foaming Material, also known as Microporous Foamed Polypropylene, is a new type of material that forms tiny internal bubbles through a special process. Its unique microporous structure (cell diameter: 0.1~50 microns, cell density: 10⁷~10⁹ per cm³) endows it with excellent comprehensive performance. Compared with unfoamed materials, its overall density can be reduced by 5%-95%, while maintaining high impact strength, good toughness and specific strength. The preparation process is green, environmentally friendly and odorless, with no chemical residues, complying with international environmental requirements. It is widely used in fields requiring lightweight design, such as new energy, electronics, automotive and packaging.

Core Features

  • High Flame Retardancy: UL 94 HF-01 flame retardant grade, effectively preventing fire spread, ensuring safe use in various scenarios.
  • Lightweight & High Strength: Density 40±8 kg/m³, lightweight but high strength, reducing product weight without sacrificing performance.
  • Clean & Eco-Friendly: Green and odorless preparation process, no chemical residues, safe and environmentally friendly.
  • Excellent Buffer Protection: Good compression performance, effectively absorbing impact and reducing vibration, protecting products from damage.
  • Superior Surface Protection: Micron-scale cell structure provides excellent surface protection, avoiding scratches on protected products.
  • Good Water Resistance: Water absorption ＜0.5%, waterproof and moisture-proof, ensuring stability in humid environments.
  • Strong Chemical Resistance: Resistant to oils, acids, alkalis and other chemicals, suitable for harsh industrial environments.

Key Technical Parameters

Item Details Test Standard / Remarks
Color White Customizable
Density 40±8 kg/m³ GB/T 6343-2009
Thermal Conductivity 0.041 W/m·K GB/T 10295-2008
Hardness (Shore C) 60±5 GB/T 531.2-2009
Heat Distortion Temperature ≥80℃ GB/T 1634.2-2004
Flame Retardancy HF-01 UL 94
Water Absorption ＜0.5% ASTM D570-98
Compression Property (MPa) 10%: 0.1≤α≤0.3; 50%: 0.2≤α≤0.5; 70%: 0.4≤α≤0.8 GB/T 1041-2008
Compression Stress Retention ≥20% GB/T 1685-2008
Tensile Strength ≥1.3 MPa ASTM D3574-2008
Tensile Modulus ≥2.8 MPa ASTM D3574-2008
Shear Strength ≥1.1 MPa ASTM C273/C273M
Shear Modulus ≥1.2 MPa ASTM C273/C273M
Low Temp Tensile Strength (-30℃) ≥1.3 MPa Stored at -30℃ for 4h
High Temp Tensile Strength (60℃) ≥1.0 MPa Stored at 60℃ for 4h
Tensile Strength after Temp Cycle ≥1.0 MPa -40℃~95℃, 200 cycles

Application Scenarios

With excellent performance, our MPP Microporous Foaming Material is widely used in various fields:

  • New energy industry: Battery packs, new energy vehicles (lightweight, flame-retardant and buffer protection)
  • Electronic products: Precision instruments, mobile phones, laptops (surface protection, shock absorption, insulation)
  • Automotive industry: Interior parts, shock absorption pads (lightweight, sound insulation, shock absorption)
  • Industrial equipment: Sealing parts, insulation parts (corrosion resistance, waterproof, heat insulation)
  • Packaging industry: High-end product packaging (buffer protection, surface protection)

Why Choose Us?

As a professional supplier of MPP Microporous Foaming Material, we are committed to providing you with high-quality products and professional services. Here are the reasons why you should choose us:

  • Excellent Sound & Heat Insulation: The unique microporous structure ensures superior sound and heat insulation performance, meeting your multi-scenario protection needs.
  • Superior Shock Absorption & Buffering: Good toughness and impact resistance, effectively absorbing impact and protecting your products from damage.
  • Strong Sealing Performance: Dense microporous structure, good airtightness and water tightness, suitable for sealing scenarios.
  • Special-Shaped Processing: Professional processing technology supports special-shaped cutting and processing, adapting to your unique product design.
  • Multiple Specifications: A variety of standard specifications are available in stock, which can be quickly delivered to meet your urgent needs.
  • Full Customization Support: We provide one-stop customization services, including thickness, size, shape and performance, fully matching your project requirements.
