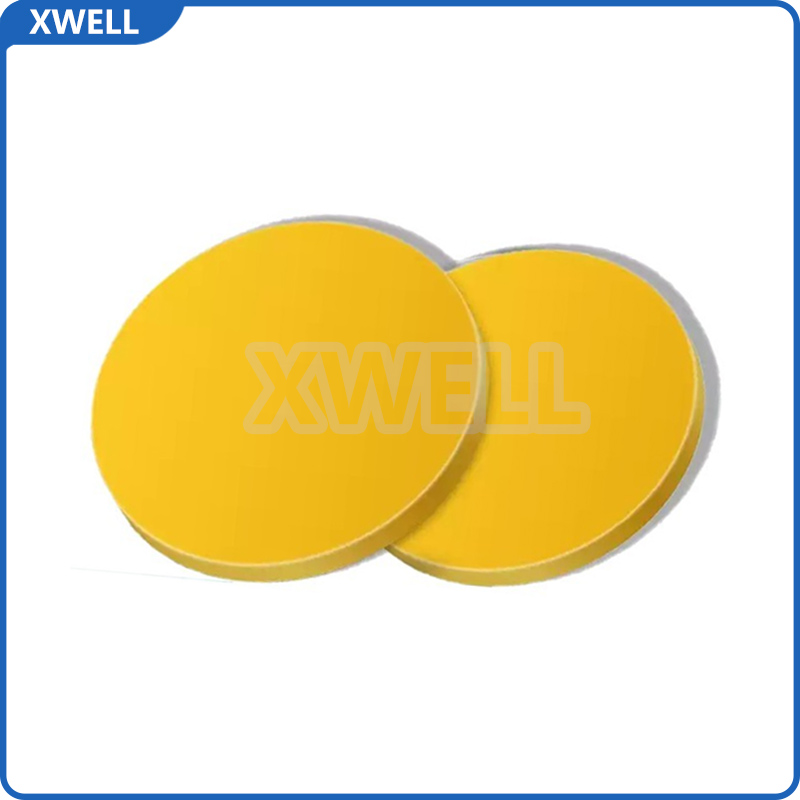

LLZTO Solid Electrolyte Tantalum Doped Lithium Lanthanum Zirconium Oxygen Li6.5La3Zr1.5Ta0.5O12
Model:LLZTO
Crystal Structure:Cubic garnet (Ia-3d)
Density:95% theoretical (5.1 g/cm³)
Thickness Options:50–300 μm (customizable)
Ionic Conductivity:1.68×10 −3 S/cm (25°C)
Activation Energy:0.25–0.30 eV
Thermal Stability:Up to 1000°C (melting point)
Storage:Argon glovebox (O₂/H₂O <0.1 ppm) to prevent Li₂CO₃ formation
MOQ:10pcs
Leading time: 5-7 working days
LLZTO Tantalum-doped Lithium Lanthanum Zirconium Oxygen Solid Electrolyte Sheet Li6.5La3Zr1.5Ta0.5O12 Battery Material
Material Overview
LLZTO (Li₆.₅La₃Zr₁.₅Ta₀.₅O₁₂) is a cubic-phase garnet-type oxide solid electrolyte with superior ionic conductivity ( S/cm at 25°C) and exceptional electrochemical stability (0–5 V vs. Li⁺/Li). Its Ta doping stabilizes the cubic structure while suppressing lithium dendrite growth, making it ideal for lithium-metal batteries.
Key Properties
| Parameter | Specification |
|---|---|
| Crystal Structure | Cubic garnet (Ia-3d) |
| Density | >95% theoretical (5.1 g/cm³) |
| Thickness Options | 50–300 μm (customizable) |
| Ionic Conductivity | S/cm (25°C) |
| Activation Energy | 0.25–0.30 eV |
| Thermal Stability | Up to 1000°C (melting point) |
Performance Highlights
- Interface Engineering
- Forms stable SEI with Li metal (critical current density: 4.2 mA/cm²)
- Low interfacial resistance (<10 Ω·cm² with Sn:SnF₂ coating)
- Mechanical Robustness
- Vickers hardness: 8–10 GPa
- Withstands >300 MPa assembly pressure
- Battery Integration
- Compatible with NMC811 cathodes (181 mAh/g initial capacity)
- Stable cycling >3000 cycles (0.1C rate)
Applications
- All-Solid-State Lithium Batteries (ASSLBs)
- Lithium-Sulfur/Lithium-Air Batteries
- Hybrid Solid-Liquid Electrolyte Systems
Handling Notes
- Storage: Argon glovebox (O₂/H₂O <0.1 ppm) to prevent Li₂CO₃ formation
- Processing: Cold-press at 300–500 MPa for pellet formation
Note: Custom formulations (e.g., Ga-doped LLZTO) and thicknesses available for research-scale orders.
