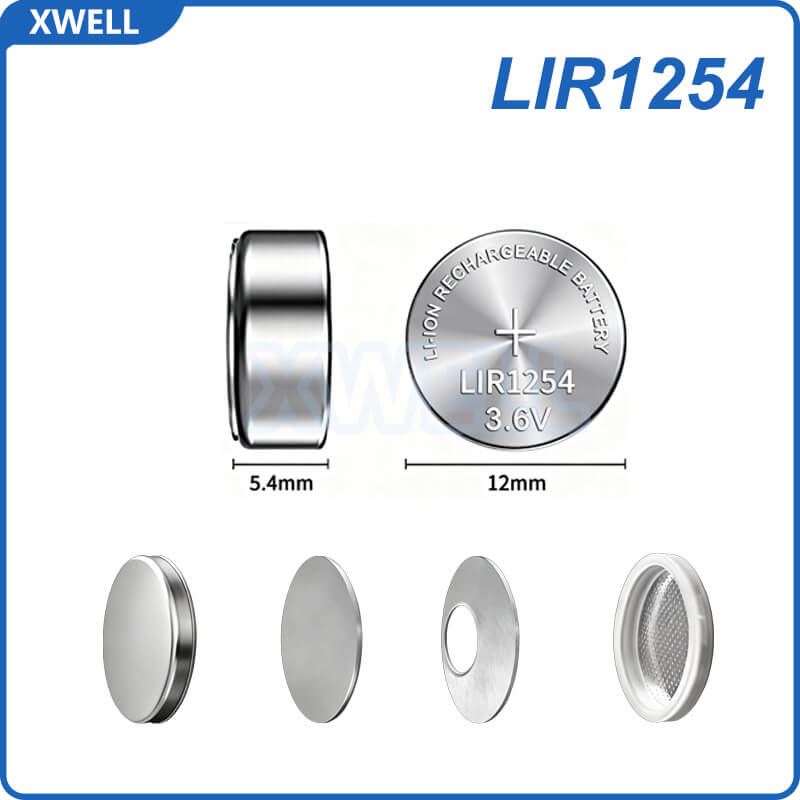

LIR1254 Coin Cell Case Kit – Rechargeable Lithium-Ion Battery with 60mAh Capacity and 3.6V/3.7V Voltage for Device Research
Model:LIR1254
Diameter: 12mm
Thickness: 5.4mm
Voltage: 3.6V / 3.7V
Working Temperature Range: -20℃ to 60℃
Capacity:60mAh
MOQ: 50 pcs
Leading time: 5-9 days
LIR1254 Coin Cell Case Kit – Rechargeable Lithium-Ion Battery for Device Research & Experiments
Our LIR1254 Coin Cell Case Kit is a specialized rechargeable lithium-ion battery solution designed for researchers, engineers, and manufacturers working on compact electronic devices. This kit includes high-performance LIR1254 coin cells housed in durable cases, optimized to deliver reliable power for small-scale electronics.
| Parameter | Details |
|---|---|
| Model | LIR1254 |
| Nominal Capacity | 60mAh |
| Nominal Voltage | 3.6V / 3.7V |
| Battery Dimensions | 12mm Diameter * 5.4mm Thickness |
| Working Temperature Range | -20℃ to 60℃ |
| Charging Methods | Standard Charge (0.2C CC to 4.2V, then CV); Fast Charge (1C CC to 4.2V, then CV) |
Key Features
- Rechargeable & Long Cycle Life: Supports hundreds of charge-discharge cycles, reducing the need for frequent battery replacement and lowering long-term costs for device testing and prototyping.
- Low Self-Discharge: Maintains charge for extended periods when not in use, ensuring reliable power for intermittent device testing and storage between experiments.
- Wide Operating Temperature Range: Performs consistently from -20℃ to 60℃, making it suitable for testing devices intended for use in diverse environmental conditions.
Ordering & Customization
- LIR1254 rechargeable lithium-ion coin cells (quantity options: 50/100/200/500 pcs)
- Durable storage cases for safe transportation and organization
- Technical datasheet with detailed performance curves and charging guidelines
Applications
- Performance testing of Li-ion electrode materials (cathodes, anodes) and electrolytes
- Evaluation of battery cycling life, rate capability, and energy density
- Studies on electrolyte-electrode interface stability and solid-electrolyte interphase (SEI) formation
- High-throughput screening of new Li-ion battery materials and formulations
- Academic research projects and industrial pre-production R&D for consumer electronics, wearable devices, and small-scale energy storage
Why Choose Our Coin Cells?
- Technical Datasheet: Includes assembly guides, material safety info, and compatibility notes.
- Expert Assistance: Our team of battery engineers is available to help select the right kit for your specific chemistry or test setup.
- Fast Shipping: In-stock kits ship within 24 hours; custom orders delivered in 5-7 business days.
