LATP Lithium Aluminum Titanium Phosphate Solid Electrolyte Sheet Li1.3Al0.3Ti1.7 PO4

  1. Home
  2. Battery material
  3. Solid State Battery Raw Material
  4. LATP Lithium Aluminum Titanium Phosphate Solid Electrolyte Sheet Li1.3Al0.3Ti1.7 PO4

​​Model:Li₁.₃Al₀.₃Ti₁.₇(PO₄)₃
 ​​​​​​​Dimensions​:13×1mm (stock), 6.8×1mm ​​​​​​Density​​​:2.77 g/cm³ (94% theoretical) Ionic Conductivity​:0.7 mS/cm @25°C
 ​​Lead Time​​:In stock (13mm), 1 week (6.8mm)
 ​​​​​​​​​​​​Applications​:​​All-Solid-State Batteries
 ​​​​​​​​​​​​​Storage​​​:Dry environment (desiccator recommended)
 ​​Temperature:25°C
 MOQ: 10g
 Leading time: 5-7 working days

SKU: Li₁.₃Al₀.₃Ti₁.₇(PO₄)₃ Category:

LATP Lithium Aluminum Titanium Phosphate Solid Electrolyte Sheet Battery Material Li1.3Al0.3Ti1.7 (PO4) Can Be Customized

Product Overview​​

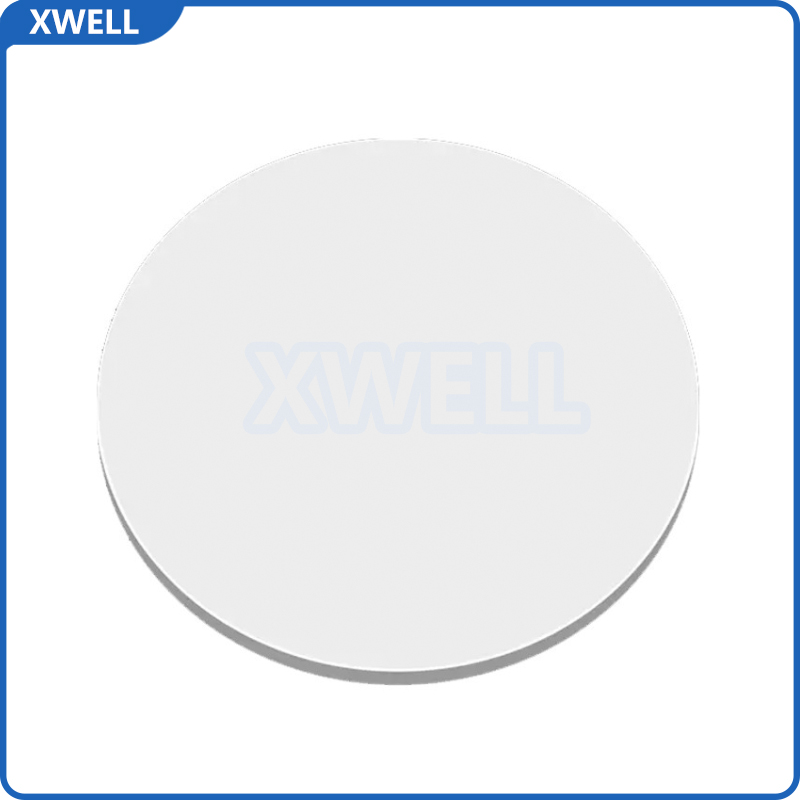

Xwell’s LATP (Lithium Aluminum Titanium Phosphate) solid-state electrolyte sheets are high-performance ceramic membranes for all-solid-state lithium batteries. With NASICON-type crystal structure and air stability, these white ceramic sheets (13±0.1mm diameter) enable safe and efficient ion transport (0.7 mS/cm at 25°C) without requiring glovebox handling.

Key Specifications​​

​​Parameter​​ ​​Specification​​ ​​Customization Options​​
​​Chemical Formula​​ Li₁.₃Al₀.₃Ti₁.₇(PO₄)₃ Ge/Nb doping available
​​Dimensions​​ 13×1mm (stock), 6.8×1mm 5-20mm diameter
​​Density​​ 2.77 g/cm³ (94% theoretical) 2.6-2.9 g/cm³ grades
​​Ionic Conductivity​​ 0.7 mS/cm @25°C High-conductivity variants
​​Lead Time​​ In stock (13mm), 1 week (6.8mm) Bulk order discounts

Material Advantages​​

  1. ​​Air Stability​​
    • Unlike LLZO, LATP remains stable in ambient conditions (RH <60%)
    • No moisture-induced degradation during handling
  2. ​​Electrochemical Performance​​
    • 3D ion channels enable 500+ cycle life in ASSLBs
    • Compatible with LiFePO₄ cathodes (tested @0.1C)
  3. ​​Mechanical Reliability​​
    • Sintered ceramic structure (not powder compact)
    • Withstands 200MPa assembly pressure

Handling Protocol​​

  1. ​​Surface Preparation​​
    • Polish with 1μm alumina slurry to remove Li₂CO₃ layer
    • Sputter gold electrodes (1-10Ω surface resistance)
  2. ​​Cell Assembly​​
    • Use CR2032 coin cells with molten Li anode
    • Apply gradual pressure (watch for shell deformation)
  3. ​​Testing​​
    • EIS measurement range: 1MHz-0.1Hz
    • Thermal aging test @100°C recommended

Applications​​

  • ​​All-Solid-State Batteries​​ (Li-metal compatible with interface modification)
  • ​​Hybrid Electrolyte Systems​​ (LATP+PEO composites)
  • ​​Coating Research​​ (Separator/electrode surface modification)

​​Storage:​​ Dry environment (desiccator recommended)
