Customizable Size & String Count Epoxy Board Bracket with 150℃ Temperature Resistance and High Dielectric Performance for Battery Insulation
Model:3240 Epoxy Board
Material:Epoxy Board
Temperature Resistance:150 (℃)
Color:Yellow
Product Certification:Available
MOQ: 10pcs
Leading time: 7-10 working days

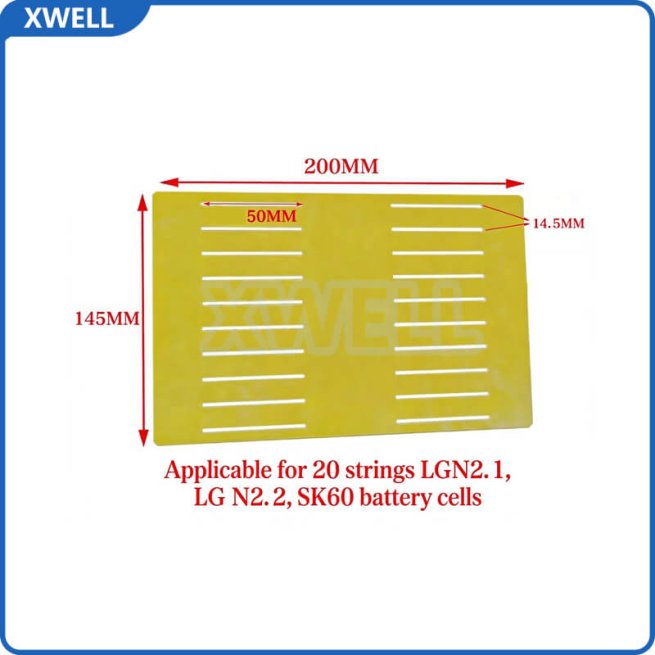

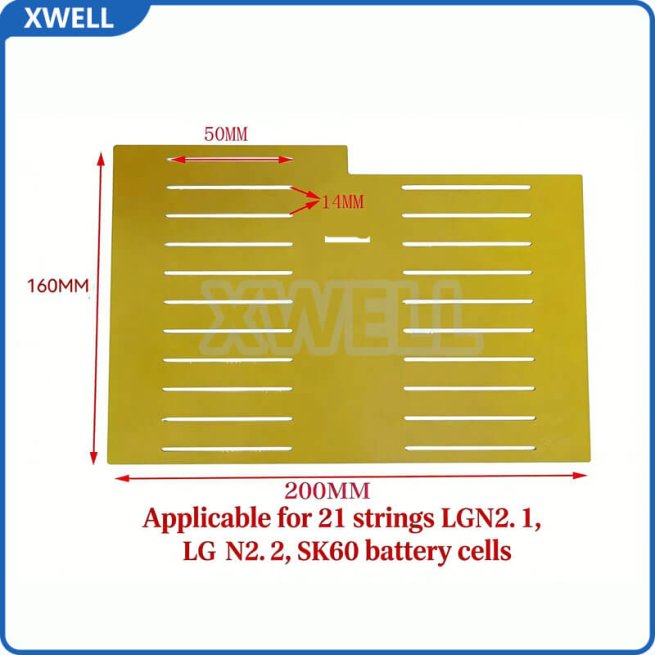

Customizable Series Soft-Pack Lithium Battery Connection Board Bracket
This epoxy board bracket is a dedicated support and insulation component for soft-pack lithium battery packs. Manufactured from high-quality epoxy board with excellent electrical insulation and mechanical strength, it securely fixes battery connection boards while isolating circuits to prevent short circuits. We offer full customization of string count, size, and layout to match your specific soft-pack battery specifications – ideal for bulk battery pack production and widely used in global new energy, energy storage, and electric vehicle industries.
Key Features
- 100% Customizable: Adjust string count, bracket size, and mounting hole positions to fit your soft-pack battery configuration (provide your specifications or drawings)
- Reliable Insulation & Strength: Epoxy board material provides high dielectric performance (prevents electrical leakage) and stable mechanical support (resists deformation under battery weight)
- Easy Assembly: Pre-drilled mounting holes (customized to your design) simplify integration into battery packs, reducing installation time
- Wide Compatibility: Compatible with all soft-pack lithium battery types (LiFePO4, NCM, etc.) for applications including energy storage systems, portable power stations, and electric vehicles
Technical Parameters
| Material | High-quality epoxy board (FR4 grade) |
|---|---|
| Insulation Grade | ≥F (operating temperature: -40℃ to +150℃) |
| Custom Range | String count: 2-100+ series, Size: 100×50mm to 1000×800mm |
| Surface Treatment | Smooth polished (burr-free) |
Applications
- Battery Packs: Insulation layers for lithium-ion and NiMH batteries
- Electrical Systems: Switchgear, transformer oil barriers, high and low-voltage applications
- Tooling & Molds: PCB/ICT fixtures, mechanical molds
Why Choose Our Epoxy Board Brackets?
Fully Customizable: We cut to any shape and size (provide your drawing or specifications) – perfect for unique project requirements
Top-Tier Performance: Cured epoxy system delivers high mechanical strength (stable at medium temperatures) and reliable electrical insulation (resists surface leakage and electric arc, even in high humidity conditions)
0.5mm Precision: Consistent thickness ensures seamless integration into your assemblies
Vibrant Yellow Finish: Standard color for easy identification in complex setups (custom colors available upon request)
