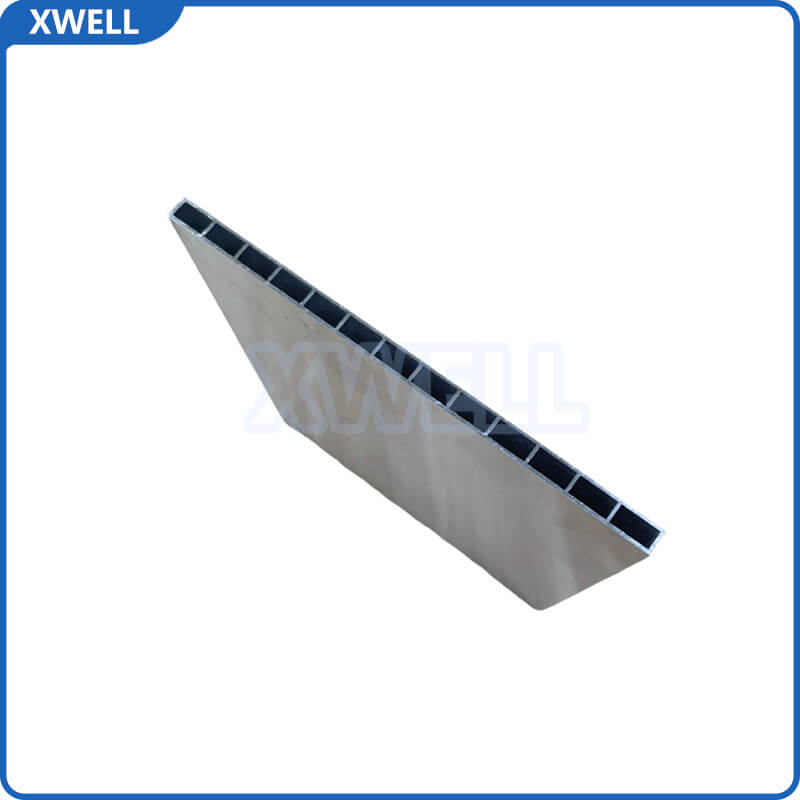

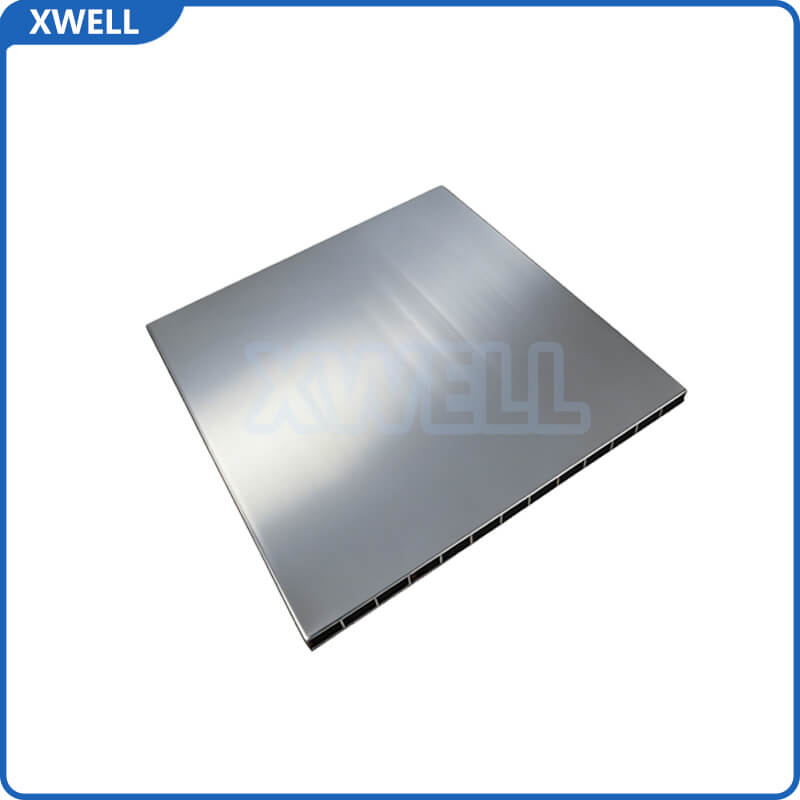

Air-cooled Heat-insulating Aluminum Panel For Prismatic Cell Battery Pack
Place of Origin:China
Material:Aluminum
size:Customizable
thickness:5mm-15 mm
tolerance:+/-0.1 mm or even 0.01 mm
Application range:For 100Ah/200Ah/300Ah Prismatic Cell Battery Pack
MOQ: 10pcs
Leading time: 7-10 working days
Air-cooled Heat-insulating Aluminum Panel For Prismatic Cell Battery Pack
Product Overview
Our air-cooled heat-insulating aluminum panel is a dedicated thermal management component for prismatic lithium-ion battery packs. This innovative solution integrates efficient air cooling, heat insulation, and structural protection in one unit, effectively regulating battery pack temperature while preventing overheating and temperature imbalances to ensure stable operation of prismatic cells.
Manufactured from high-grade aluminum alloy, this panel offers lightweight construction, high strength, and excellent corrosion resistance. It is widely applied in new energy vehicles, energy storage systems, and industrial battery packs, earning recognition from global buyers for its reliable performance.
Core Advantages
- Efficient Air Cooling Performance: Built-in optimized air channel design accelerates heat dissipation of prismatic cells, reducing battery pack internal temperature difference to ≤3℃ and preventing thermal runaway.
- Superior Heat Insulation: Integrated high-temperature resistant insulation layer (ceramic fiber/aerogel optional) with thermal conductivity ≤0.03W/(m*K), effectively isolating external high/low temperature impact.
- High-Quality Aluminum Alloy Material: Utilizes 6061/6063 aluminum alloy for lightweight construction (density 2.7g/cm³) and high structural strength, capable of bearing prismatic cell weight and external impact.

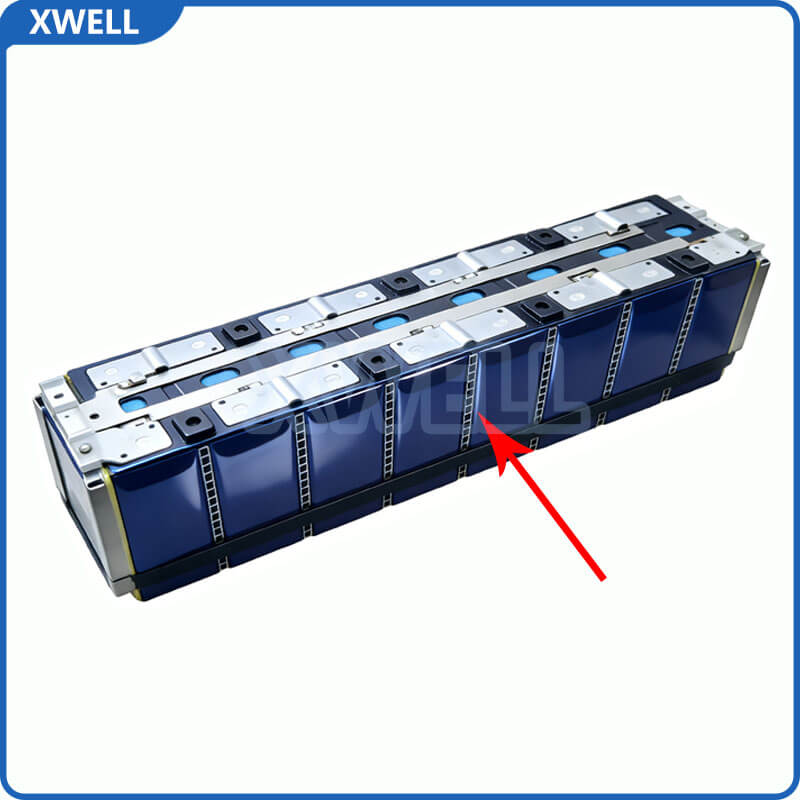

- Customized for Prismatic Cells: Precise design according to prismatic cell dimensions (100Ah/200Ah/300Ah etc.) and battery pack layout ensures perfect fit with prismatic cells and easy assembly.
- Excellent Corrosion Resistance: Surface anodizing/electrophoretic coating treatment provides salt spray resistance ≥1000 hours, adaptable to harsh working environments including humid, high-salt, and industrial areas.
Technical Parameters
| Parameter | Specification |
|---|---|
| Material | Aluminum |
| Working Temperature Range | -40℃ ~ +120℃ |
| Thermal Conductivity | ≤0.03W/(m*K) |
| Surface Treatment | Anodizing/Electrophoretic Coating (black/silver optional) |
| Applicable Cell Type | Prismatic Lithium-ion Battery (LiFePO4/NCM) |
| Thickness | Customizable (3mm~15mm) |
Application Scenarios
Widely used in prismatic battery packs for New Energy Vehicles (EVs, hybrid vehicles), Household/Industrial Energy Storage Systems (ESS), Electric Forklifts, Telecom Base Station Batteries, and Portable Power Stations.
Contact Us
Welcome to send inquiry for detailed quote, technical datasheet or free sample! Our professional foreign trade team and engineering team will reply within 24 hours to provide one-stop thermal management solutions for your prismatic battery packs.
